Probleme mit Modbus TCP Carlo Gavazzi EM24

Allgemein
1

Ich versuche einen Carlo Gavazzi Zähler EM24-E1-AV2 X in HA einzubinden.

Dazu habe ich die config. yaml um diese Einträge erweitert.
Zum Test nur mit einem Sensor:

modbus:
  - name: EM24
    type: tcp
    host: 192.168.1.10
    port: 502
    sensors:
      - name: EM1 Phase 1 voltage
        address: 0
        slave: 1
        unique_id: em1_phase_1_voltage
        data_type: int32
        device_class: voltage
        input_type: input
        precision: 2
        scale: 0.1
        state_class: measurement
        swap: word
        unit_of_measurement: V

Im homeassistance.log bekomme ich folgenden Fehler:

2025-07-06 16:22:31.047 WARNING (SyncWorker_0) [homeassistant.loader] We found a custom integration hacs which has not been tested by Home Assistant. This component might cause stability problems, be sure to disable it if you experience issues with Home Assistant
2025-07-06 16:22:33.481 WARNING (MainThread) [pymodbus.logging] Failed to connect [Errno 111] Connect call failed ('192.168.1.10', 502)
2025-07-06 16:22:34.137 ERROR (MainThread) [homeassistant.components.modbus.modbus] Pymodbus: EM24: Error: device: 1 address: 0 -> Modbus Error: [Connection] Not connected[AsyncModbusTcpClient 192.168.1.10:502]

Was mache ich falsch?

Bin dankbar für jeden Tip.
Möchte im nächsten Schritt mehrere Zähler einbinden.

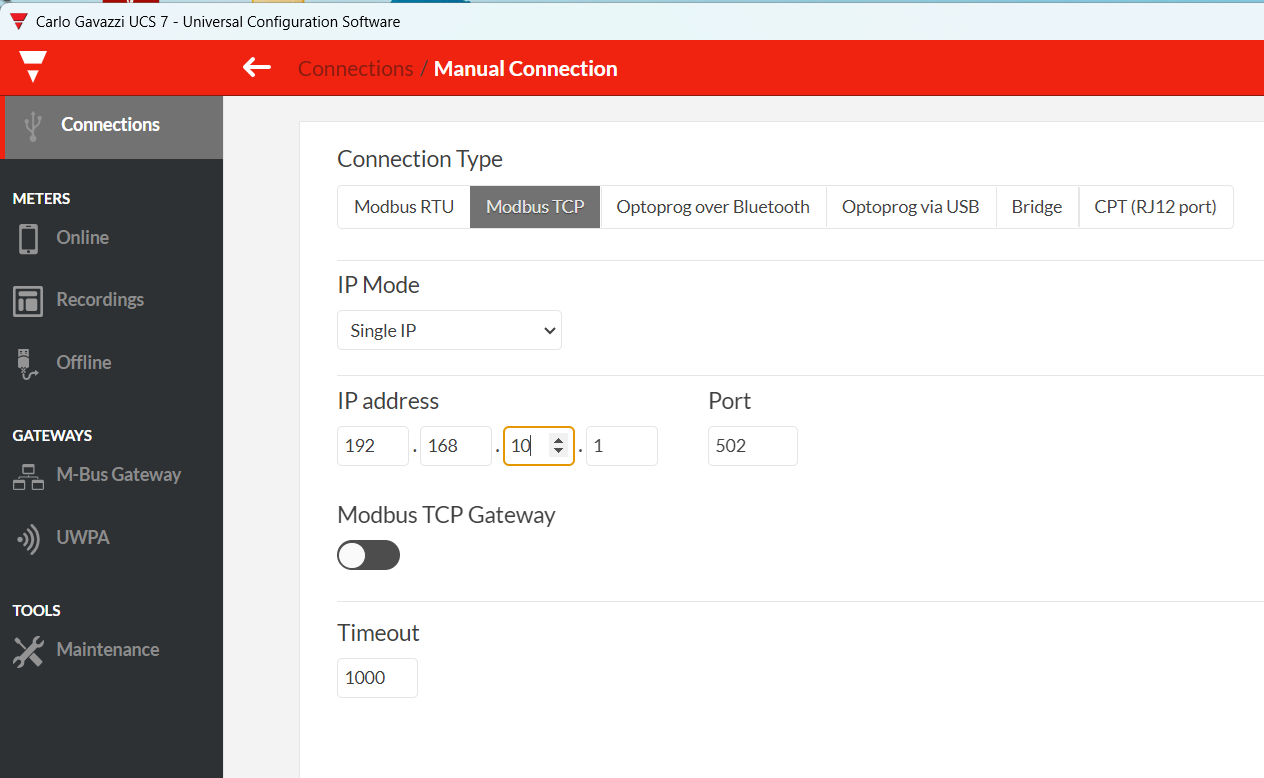

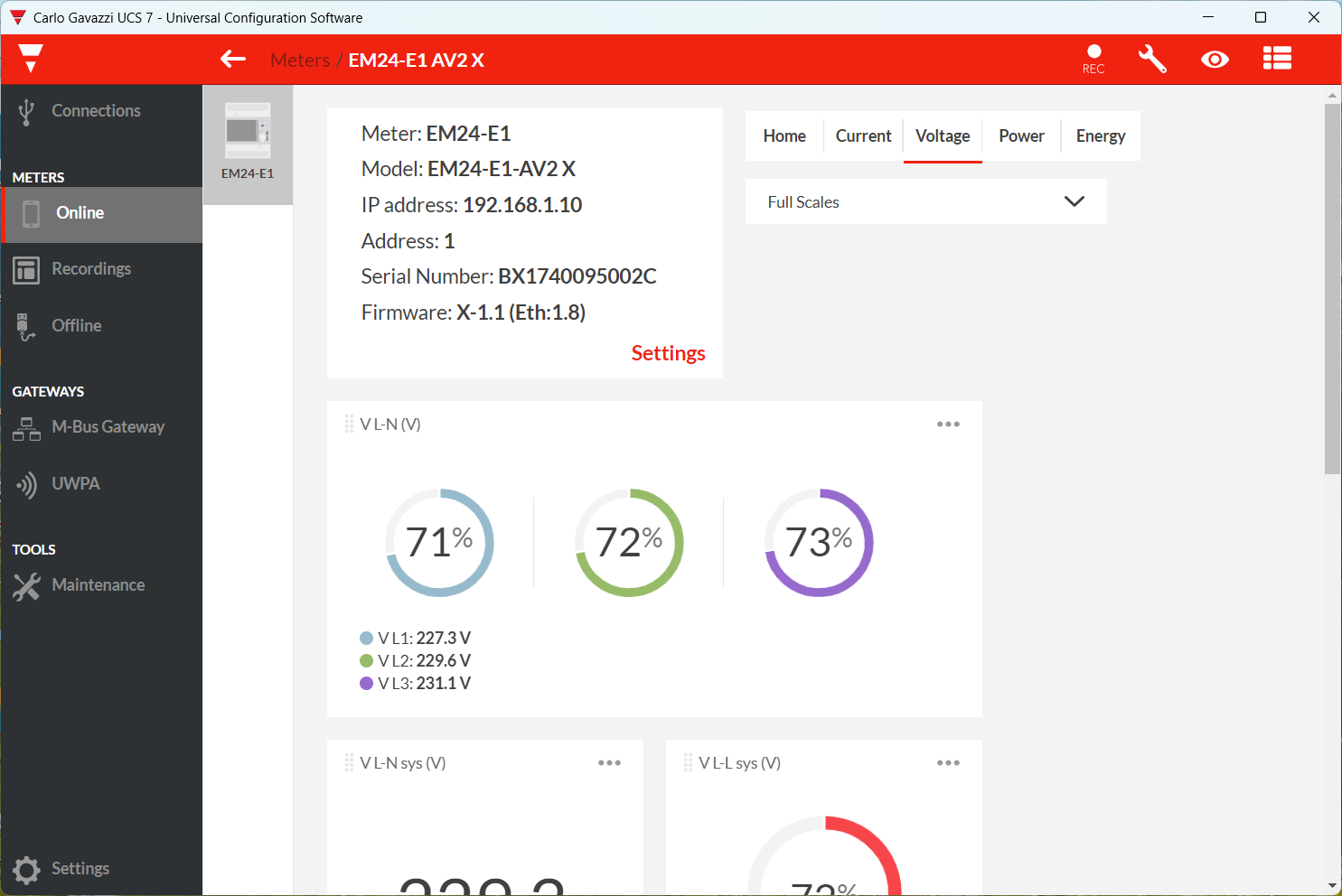

In der Konfigurationssoftware von Carlo Gavazzi UCS7 funktioniert die Verbindung:

grafik
grafik1264×778 48.5 KB

grafik
grafik1485×992 92 KB

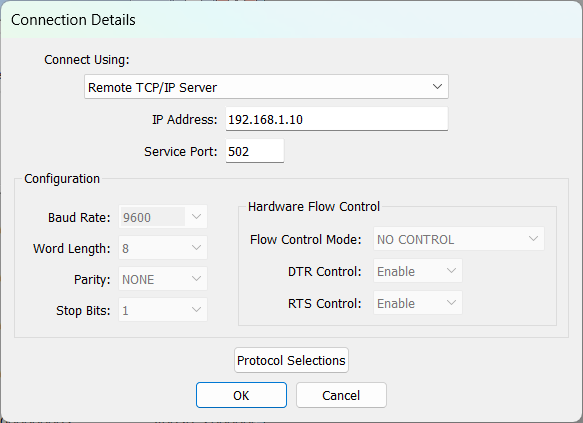

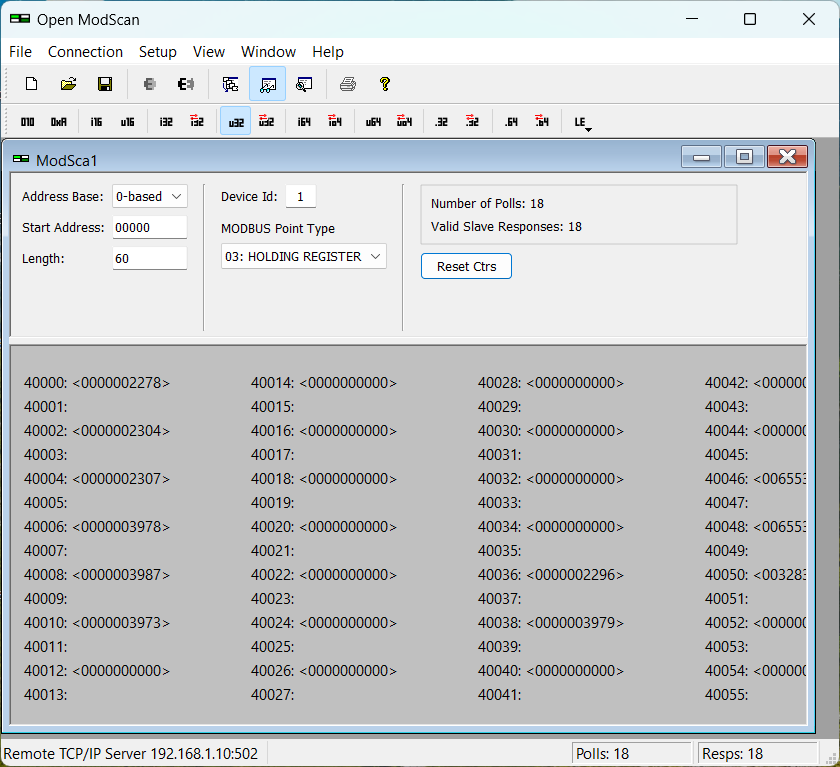

Auch mit Open Mod Scan kann ich die Register lesen:

grafik
grafik583×423 12.2 KB

grafik
grafik840×767 37.6 KB

1 „Gefällt mir“
2

Probier es mal hiermit.
Das sind alle Sensoren die ich mir im Internet zusammen gesucht habe. Bei mir funktionierts.

# Carlo Gavacci EM24 Hauptzaehler
  - name: zaehler
    type: tcp
    host: 192.168.x.x
    port: 502
    sensors:
      - name: EM24_L1-N
        unit_of_measurement: V
        slave: 1
        address: 0
#        data_type: int32
        input_type: input
        scale: 0.1
        precision: 2
        device_class: voltage
      - name: EM24_L2-N
        unit_of_measurement: V
        slave: 1
        address: 1
        data_type: int32
        scale: 0.1
        precision: 2
        device_class: voltage
      - name: EM24_L3-N
        unit_of_measurement: V
        slave: 1
        address: 3
        data_type: int32
        scale: 0.1
        precision: 2
        device_class: voltage
      - name: EM24_L1-2
        unit_of_measurement: V
        slave: 1
        address: 5
        data_type: int32
        scale: 0.1
        precision: 2
        device_class: voltage
      - name: EM24_L2-3
        unit_of_measurement: V
        slave: 1
        address: 7
        data_type: int32
        scale: 0.1
        precision: 2
        device_class: voltage
      - name: EM24_L3-1
        unit_of_measurement: V
        slave: 1
        address: 9
        data_type: int32
        scale: 0.1
        precision: 2
        device_class: voltage
      - name: EM24_L1
        unit_of_measurement: A
        slave: 1
        address: 12
#        data_type: int32
        input_type: input
        scale: 0.001
        precision: 2
        device_class: current
      - name: EM24_L2
        unit_of_measurement: A
        slave: 1
        address: 13
        data_type: int32
        scale: 0.001
        precision: 2
        device_class: current
      - name: EM24_L3
        unit_of_measurement: A
        slave: 1
        address: 15
        data_type: int32
        scale: 0.001
        precision: 2
        device_class: current
      - name: EM24_Gesamt
        unit_of_measurement: kWh
        slave: 1
        address: 61
        data_type: int32
        scale: 0.1
        precision: 2
        device_class: energy
        state_class: total
      - name: EM24_W L1
        unit_of_measurement: Wh
        slave: 1
        address: 17
        data_type: int32
        scale: 0.1
        precision: 2
        device_class: energy
        state_class: total
      - name: EM24_W L2
        unit_of_measurement: Wh
        slave: 1
        address: 19
        data_type: int32
        scale: 0.1
        precision: 2
        device_class: energy
        input_type: input
        state_class: total
      - name: EM24_W L3
        unit_of_measurement: Wh
        slave: 1
        address: 21
        data_type: int32
        scale: 0.1
        precision: 2
        device_class: energy
        input_type: input
        state_class: total
      - name: EM24_Frequency
        unit_of_measurement: Hz
        slave: 1
        address: 0x0033
        input_type: input
        data_type: int16
        scale: 0.1
        precision: 2
        device_class: frequency
        unique_id: Frequency
      - name: EM24_Leistung Aktuell
        unit_of_measurement: W
        slave: 1
        address: 39
        data_type: int32
        scale: 0.1
        precision: 2
        device_class: power
      - name: EM24_Scheinl Aktuell
        unit_of_measurement: VA
        slave: 1
        address: 42
#        data_type: int32
        scale: 0.001
        precision: 2
        device_class: apparent_power
      - name: EM24_Blindl Aktuell
        unit_of_measurement: var
        slave: 1
        address: 44
#        data_type: int32
        scale: 0.001
        precision: 2
        device_class: reactive_power

Wenn du Vorschläge zur Optimierung hast, immer her damit.

3

Danke!.
Ich habe das Problem gefunden. Zu peinlich.

Es war zwei mal die gleiche IP im Netzwerk.
Erstaunlich, dass die Herstellersoftware und Open Mod Scan keine Probleme hatte.

Alles gut!

1 „Gefällt mir“
4

Auch wenn der Beitrag schon gelöst ist bzw auch etwas älter, aber eventuell für den Ein oder Anderen interessant.
Ich bekam mit den Werten keine plausiblen Daten, daher habe ich nochmal genauer nachgeschaut und bin nach dem PDF gegangen, welches für ein EM24_E1_CP gilt:
https://www.gavazziautomation.com/fileadmin/images/PIM/OTHERSTUFF/COMPRO/EM24_E1_CP.pdf

Hier dazu eine passende YAML:

modbus:
  - name: zaehler
    type: tcp
    host: 192.168.33.246
    port: 502
    sensors:
      ################
      # Spannungen
      ################
      - name: EM24_V_L1_N
        slave: 1
        address: 2        # V L1-N
        input_type: input
        data_type: int32
        swap: word
        unit_of_measurement: V
        scale: 0.1
        precision: 1
        device_class: voltage
        state_class: measurement

      - name: EM24_V_L2_N
        slave: 1
        address: 4        # V L2-N
        input_type: input
        data_type: int32
        swap: word
        unit_of_measurement: V
        scale: 0.1
        precision: 1
        device_class: voltage
        state_class: measurement

      - name: EM24_V_L3_N
        slave: 1
        address: 6        # V L3-N
        input_type: input
        data_type: int32
        swap: word
        unit_of_measurement: V
        scale: 0.1
        precision: 1
        device_class: voltage
        state_class: measurement

      - name: EM24_V_L1_L2
        slave: 1
        address: 8        # V L1-L2
        input_type: input
        data_type: int32
        swap: word
        unit_of_measurement: V
        scale: 0.1
        precision: 1
        device_class: voltage
        state_class: measurement

      - name: EM24_V_L2_L3
        slave: 1
        address: 10       # V L2-L3
        input_type: input
        data_type: int32
        swap: word
        unit_of_measurement: V
        scale: 0.1
        precision: 1
        device_class: voltage
        state_class: measurement

      - name: EM24_V_L3_L1
        slave: 1
        address: 12       # V L3-L1
        input_type: input
        data_type: int32
        swap: word
        unit_of_measurement: V
        scale: 0.1
        precision: 1
        device_class: voltage
        state_class: measurement

      ################
      # Ströme
      ################
      - name: EM24_A_L1
        slave: 1
        address: 14       # A L1
        input_type: input
        data_type: int32
        swap: word
        unit_of_measurement: A
        scale: 0.001      # laut Protokoll mA*1
        precision: 3
        device_class: current
        state_class: measurement

      - name: EM24_A_L2
        slave: 1
        address: 16       # A L2
        input_type: input
        data_type: int32
        swap: word
        unit_of_measurement: A
        scale: 0.001
        precision: 3
        device_class: current
        state_class: measurement

      - name: EM24_A_L3
        slave: 1
        address: 18       # A L3 (wenn laut Protokoll so belegt)
        input_type: input
        data_type: int32
        swap: word
        unit_of_measurement: A
        scale: 0.001
        precision: 3
        device_class: current
        state_class: measurement

      ################
      # Wirkleistung
      ################
      - name: EM24_W_L1
        slave: 1
        address: 18       # W L1
        input_type: input
        data_type: int32
        swap: word
        unit_of_measurement: W
        scale: 0.1
        precision: 1
        device_class: power
        state_class: measurement

      - name: EM24_W_L2
        slave: 1
        address: 20       # W L2
        input_type: input
        data_type: int32
        swap: word
        unit_of_measurement: W
        scale: 0.1
        precision: 1
        device_class: power
        state_class: measurement

      - name: EM24_W_L3
        slave: 1
        address: 22       # W L3
        input_type: input
        data_type: int32
        swap: word
        unit_of_measurement: W
        scale: 0.1
        precision: 1
        device_class: power
        state_class: measurement

      - name: EM24_W_Total
        slave: 1
        address: 24       # W Σ
        input_type: input
        data_type: int32
        swap: word
        unit_of_measurement: W
        scale: 0.1
        precision: 1
        device_class: power
        state_class: measurement

      ################
      # Schein‑ & Blindleistung
      ################
      - name: EM24_VA_Total
        slave: 1
        address: 42       # VA Σ
        input_type: input
        data_type: int32
        swap: word
        unit_of_measurement: VA
        scale: 0.1
        precision: 1
        device_class: apparent_power
        state_class: measurement

      - name: EM24_var_Total
        slave: 1
        address: 44       # var Σ
        input_type: input
        data_type: int32
        swap: word
        unit_of_measurement: var
        scale: 0.1
        precision: 1
        device_class: reactive_power
        state_class: measurement

      - name: EM24_PF_Total
        slave: 1
        address: 46       # PF Σ
        input_type: input
        data_type: int16
        unit_of_measurement: ""
        scale: 0.001      # laut Protokoll
        precision: 3
        device_class: power_factor
        state_class: measurement

      ################
      # Frequenz
      ################
      - name: EM24_Frequency
        slave: 1
        address: 51       # Frequency
        input_type: input
        data_type: int16
        unit_of_measurement: Hz
        scale: 0.1
        precision: 2
        device_class: frequency
        state_class: measurement

      ################
      # Energie – Gesamt
      ################
      - name: EM24_kWh_Import_Total
        slave: 1
        address: 52       # kWh (+) total
        input_type: input
        data_type: int32
        swap: word
        unit_of_measurement: kWh
        scale: 0.1
        precision: 2
        device_class: energy
        state_class: total_increasing

      - name: EM24_kWh_Export_Total
        slave: 1
        address: 78       # kWh (-) total
        input_type: input
        data_type: int32
        swap: word
        unit_of_measurement: kWh
        scale: 0.1
        precision: 2
        device_class: energy
        state_class: total_increasing

      ################
      # Energie – je Phase
      ################
      - name: EM24_kWh_Import_L1
        slave: 1
        address: 70       # kWh (+) L1
        input_type: input
        data_type: int32
        swap: word
        unit_of_measurement: kWh
        scale: 0.1
        precision: 2
        device_class: energy
        state_class: total_increasing

      - name: EM24_kWh_Import_L2
        slave: 1
        address: 72       # kWh (+) L2
        input_type: input
        data_type: int32
        swap: word
        unit_of_measurement: kWh
        scale: 0.1
        precision: 2
        device_class: energy
        state_class: total_increasing

      - name: EM24_kWh_Import_L3
        slave: 1
        address: 74       # kWh (+) L3
        input_type: input
        data_type: int32
        swap: word
        unit_of_measurement: kWh
        scale: 0.1
        precision: 2
        device_class: energy
        state_class: total_increasing

      - name: EM24_kWh_Export_L1
        slave: 1
        address: 86       # kWh (-) L1
        input_type: input
        data_type: int32
        swap: word
        unit_of_measurement: kWh
        scale: 0.1
        precision: 2
        device_class: energy
        state_class: total_increasing

      - name: EM24_kWh_Export_L2
        slave: 1
        address: 88       # kWh (-) L2
        input_type: input
        data_type: int32
        swap: word
        unit_of_measurement: kWh
        scale: 0.1
        precision: 2
        device_class: energy
        state_class: total_increasing

      - name: EM24_kWh_Export_L3
        slave: 1
        address: 90       # kWh (-) L3
        input_type: input
        data_type: int32
        swap: word
        unit_of_measurement: kWh
        scale: 0.1
        precision: 2
        device_class: energy
        state_class: total_increasing
5

Danke tugsi,

ich werd’s bei mir auch mal so einbinden. Habe noch nicht viel gemacht seit ich eingezogen bin.

1 „Gefällt mir“
