HORSE-SHOE, MUSHROOM und CARD-MOD…
type: custom:flex-horseshoe-card
card_mod: null
style: |
ha-card {
left: -31%;
width: 132%;
}
entities:
- entity: sensor.sunny_boy_grid_power
decimals: 0
icon: mdi:solar-power-variant
name: Solaranlage
area: Solarstrom
- entity: sensor.sma_strom_eigenverbrauch_prozent
decimals: 0
name: Eigenverbrauch
- entity: sensor.sma_strom_autarkie_prozent
decimals: 0
name: Autargie
show:
scale_tickmarks: true
horseshoe_style: lineargradient
layout:
hlines:
- id: 0
xpos: 50
ypos: 41
length: 70
styles:
- stroke: var(--primary-text-color);
- stroke-width: 2;
- opacity: 0.5;
- stroke-linecap: round;
color: '#FFF6E3'
vlines:
- id: 0
xpos: 50
ypos: 56
length: 20
styles:
- stroke: var(--primary-text-color);
- opacity: 0.5;
- stroke-width: 2;
- stroke-linecap: round;
states:
- id: 0
entity_index: 0
xpos: 50
ypos: 36
styles:
- font-size: 2.8em;
- id: 1
entity_index: 1
xpos: 48
ypos: 56
styles:
- font-size: 2.2em;
- text-anchor: end;
- font-style: normal;
- opacity: 0.7;
- id: 2
entity_index: 2
xpos: 52
ypos: 56
styles:
- font-size: 2.2em;
- text-anchor: start;
- font-style: normal;
- opacity: 0.7;
names:
- id: 0
entity_index: 0
xpos: 50
ypos: 94
styles:
- font-size: 1.5em;
- text-transform: capitalize;
- id: 1
entity_index: 1
xpos: 46
ypos: 62
styles:
- font-size: 0.6em;
- text-anchor: end;
- opacity: 0.5;
- text-transform: capitalize;
- id: 2
entity_index: 2
xpos: 54
ypos: 62
styles:
- font-size: 0.6em;
- text-anchor: start;
- opacity: 0.5;
- text-transform: capitalize;
areas:
- id: 0
entity_index: 0
xpos: 50
ypos: 76
styles:
- font-size: 1.0em;
- opacity: 0.4;
horseshoe_state:
color: '#43a047'
horseshoe_scale:
min: 0
max: 5000
color: '#2e7031'
width: 2
color_stops:
'1000': '#43a047'
'2000': '#32CD32'
'3100': '#ADFF2F'

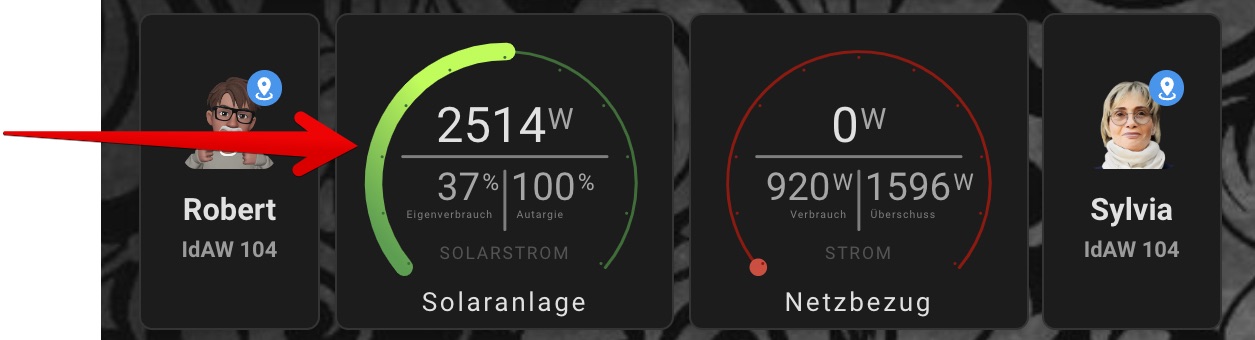

Sieht dann so aus…
Ich habe es so gemacht. Hoffe es hilft weiter!
####################################################
# #
# Autarkie in % #
# #
####################################################
- sensor:
- name: sma_strom_autarkie_prozent
unit_of_measurement: "%"
icon: mdi:percent
unique_id: 1cc3b7d4-bc80-425c-8ce2-90a1a3ab6b3a
state: >
{% set sun_generated = states('sensor.sunny_boy_grid_power') | float(0) %}
{% if sun_generated == 0 %}
0
{% else %}
{% set electricity_get = states('sensor.sunny_boy_metering_current_consumption') | float(0) %}
{% set electricity_percent = (( sun_generated * 100 ) / electricity_get ) | round(0) %}
{% if electricity_percent <= 0 %}
0
{% elif electricity_percent > 100 %}
100
{% else %}
{{ electricity_percent }}
{% endif %}
{% endif %}
####################################################
# #
# Eigenverbrauch in % #
# #
####################################################
- sensor:
- name: sma_strom_eigenverbrauch_prozent
unit_of_measurement: "%"
icon: mdi:transmission-tower-import
unique_id: 89526d8d-ce87-44b5-a071-33cb25472761
state: >
{% set sun_generated = states('sensor.sunny_boy_grid_power') | float(0) %}
{% if sun_generated == 0 %}
0
{% else %}
{% set electricity_get = states('sensor.sunny_boy_metering_current_consumption') | float(0) %}
{% set electricity_percent = (( electricity_get * 100 ) / sun_generated ) | round(0) %}
{% if electricity_percent <= 0 %}
0
{% elif electricity_percent > 100 %}
100
{% else %}
{{ electricity_percent }}
{% endif %}
{% endif %}
